USB FINGERPRINT DEVICES FOR HIGHLY SECURE DESKTOP APPLICATIONS
The MorphoSmart™ 1300 Series (or MSO 1300 Series) is a range of compact biometric USB devices. They use Morpho’s patented optical technology and fingerprint algorithms, both acknowledged worldwide for their high levels of performance and their exceptional robustness. Morpho fingerprint technology is ranked #1 by NIST for accuracy.
The MorphoSmart™ 1300 Series offers a reliable, ergonomic and cost-effective solution for enrollment, identity verification and user identification. Their match-on-device or match-on-card functions guarantee the faultless protection of information and the security of desktop applications.
HIGH QUALITY FINGERPRINT ACQUISITION
Optical technology offers superior image quality
- High performance sensor: 500 dpi, 256 grey levels
- Interfaces display key information to help users: live image, messages (position, pressure etc.) and fingerprint quality score
Lessons learnt from real world deployments put into practice
- Mechanical/visual guides ensure intuitive finger placement
- Interfaces display key information to help users: live image, messages (position, pressure etc.) and fingerprint quality score
Large acquisition surface for optimized capture and repeatable placement

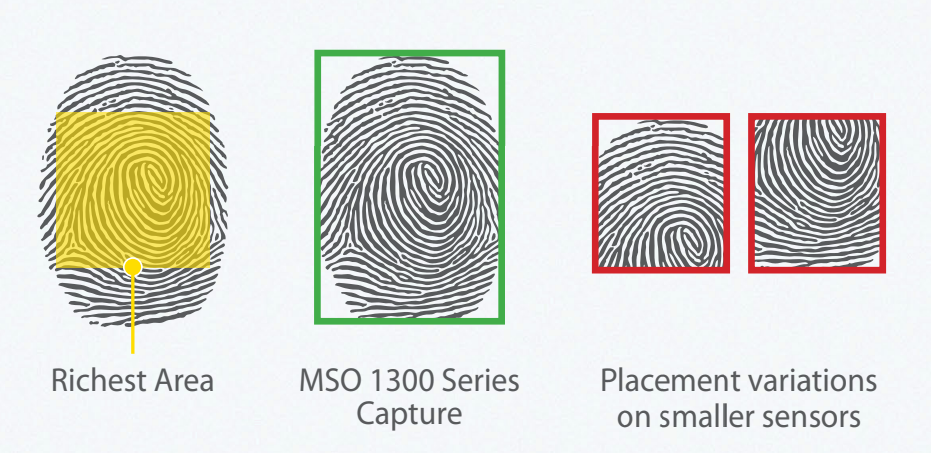

MSO 1300 Series capture surface (14x22mm) ensures that the richest area on fingerprints is systematically captured time after time. Acquisition surface area contributes significantly to the overall biometric performance:
- It determines the amount of minutiae data that can be captured
- Other, smaller sensors, allow different areas of the same finger to be presented with each placement, leading to poor data acquisition, narrow areas of overlap and matching errors
MORE THAN SENSORS, INTELLIGENT DEVICES
Wh ile most sensors on the marketare only capable of producing fingerprint images, the MSO 1300 Series devices are also capable of processing them internally, running powerful algorithms directly on their embedded processor.
- Image Compression using WSQ algorithm from FBI/NIST
- Biometric Feature Extraction to generate templates
- Feature Extractor is MINEX/FIPS 201 compliant
- Proprietary, ISO 19794-2 or ANSI 378 template formats available
- Templates can be stored in the internal database
- Biometric Matching
- Matcher is MINEX/FIPS 20T compliant
- 1:1 authentication or 1:N identification (up to N = 5000 users)
- High accuracy: the false acceptance rate (FAR) is configurable down to 10-8 (depending on the security requirements) and maintained regardless of number of users in database
- Fast matching (refer to the table on right page)
- Match-on-Card is available on MSO 1350 V3/ MSO 1350 E3
- Capability of addressing juvenile fingers
- An anti-latency feature detects fingerprint traces reactivated under certain lighting conditions
EMBEDDED SECURITY FEATURES
When sensitive data (image or template) needs to be shared with a Host System, the MSO 1300 Series devices are capable of securing them before dispatching.
- Multiple security principles available:
- Symmetric and asymmetric keys,
- Key derivation,
- Hashing algorithm,
- Random number generator,
- etc.
- Image and Template Encryption for the sake of confidentiality
- Template Signature (X9.84 standard) to guarantee the origin and the integrity of the data sent to the Host System
- The communication channel between device and Host/ Distant System can be protected using either Secure Tunneling or Offered Security mode
MSO 1300 E3 & MSO 1350 E3: BEST IN SERIES, BEST IN CLASS
Enhanced image quality
These precision designed, top of the range devices produce a fingerprint image that is certified PIV IQS by the FBI. The reference standard in terms of single fingerprint image quality (equivalent to ISO 19794-4:2011 Annexure B) was defined to ensure interoperability between multiple solutions.
Fake Finger Detection
MSO 1300 E3 and MSO 1350 E3 detect a large panel of counterfeit fingerprint, including but not limited to those made with latex, Plasticine, Kapton, transparent film, rubber, Play-Doh, graphite or paper.
MULTIPLE APPLICATIONS
- Banking and finance: secure and swift access to core banking applications or trading stations in dealing rooms
- Enterprise: biometric PC login and Single-Sign-On solutions (no more passwords)
- Healthcare: access to medical records restricted to authorized staff
- Fast, convenient, cashless payment at checkouts in stores, supermarkets or cafeterias
- E-commerce secure payment
- Check cashing services, pension/benefit payments after ID verification or identification
SOFTWARE PACKAGES
- Available for Windows, Linux and Android platforms
- Includes a BioAPl interface
